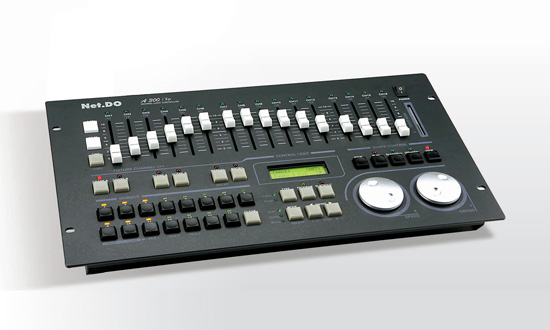

A300 SERIES MOVING LIGHT CONTROLLER

A300

A300 MOVING LIGHT CONTROLLER:

l          DMX512/1990 standard, 240 DMX channels, 2 output with optical isolated.

l          Up to 15 intelligent Fixtures may be connected with a maximum of 16 channels each.

l          16-bit X/Y control for absolutely precise movement.

l          The X/Y channel of different intelligent Fixtures can be controlled by modulation Wheel.

l          Shape track control is provided to control such effects as circles, lines and shapes like 8, etc.

l          30 chases, up to 100 steps each. Trigger mode selectable: Music synchronously, auto, manual speed.

l          8 chases, 30 scenes operated at the same time. At most 15 intelligent Fixtures can be selected simultaneously.

l          Flash card slot is provided. Each flash card has 3 file areas, each file area can record the whole data of controller,

l          15 MACRO, running combination of different manual、scene and chase can be recorded to the MACRO,

l          LCD display with backlight.

l          Power supply: AC 90-250V / 50-60Hz

l          Size: 485mm x 267mm x 85mm

Download Product User's Manual
